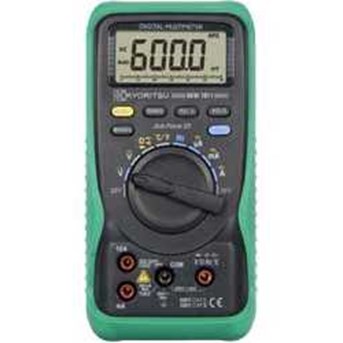

KYORITSU 1011

• Temperature measurement, selectable for ºC and ºF • 6040 counts with Bar Graph display • MIN/MAX function enables to record min & max value • REL(relative value) function to indicate the measurement variation • DUTY function • Data Hold function, Auto Power Off function • Continuity with buzzer and Diode Check function • Capacity measurement of capacitors • Current ranges are protected by fuses • Designed to meet international safety standards IEC 61010-1 CAT.III 300V / CAT.II 600V DC V : 600.0mV/6.000/60.00/600.0/600V (Input Impedance: 10M©, 100M© only 600mV) |±0.5%±2dgt (600.0mV/6.000/60.00/600.0V) |±0.8%±3dgt (600V) AC V : 6.000/60.00/600.0/600V (Input Impedance: 10M©) |±1.0%±3dgt (6.000/60.00/600.0V) |±1.5%±3dgt (600V) DC A : 600/6000µA/60/600mA/6/10A |±1.2%±3dgt (600/6000µA/60/600mA) |±2.0%±5dgt (6/10A) AC A : 600/6000µA/60/600mA/6/10A |±1.5%±4dgt (600/6000µA/60/600mA) |±2.2%±5dgt (6/10A) © : 600©/6/60/600k©/6/60M© |±1.0%±2dgt (600©/6/60/600k©/6M©) |±2.0%±3dgt (60M©) Continuity buzzer : 0~600© (Buzzer sounds below 100©) Diode Check : 2.8V Release Voltage:Approx. 0.4mA Test Current Capacitance : 40/400nF/4/40/400/4000µF Frequency : 10/100/1000Hz/10/100/1000kHz/10MHz DUTY 0.1~99.9% (Pulse width/Pulse period) |±2.0%±2dgt (~10kHz) Temperature : -50~300ºC (-58~572ºF) (with the use of Temperature probe 8216) Note: KEW 1011 can measure max. 700ºC In order to measure over 300ºC, please use a K-type temperature probe available in the market. Display : 6040 Counts Withstand : Voltage AC 3700V / 1min. Applicable Standard : IEC 61010-1 CAT.III 300V Pollution degree 2 IEC 61010-1 CAT.II 600V Pollution degree 2 IEC 61010-031 IEC 61326 Power Source : R6P (1.5V) × 2 (Auto-power-OFF within 15 minutes) Dimensions : 161(L) × 82(W) × 50(D)mm Weight : Approx. 280g Accessories : KTL04 (Test Lead) 8216 (K-type Temperature probe) 0.8A/600V (Ceramic Fuse) × 1built-in 10A/600V (Ceramic Fuse) × 1built-in R6P × 2Instruction Manual
